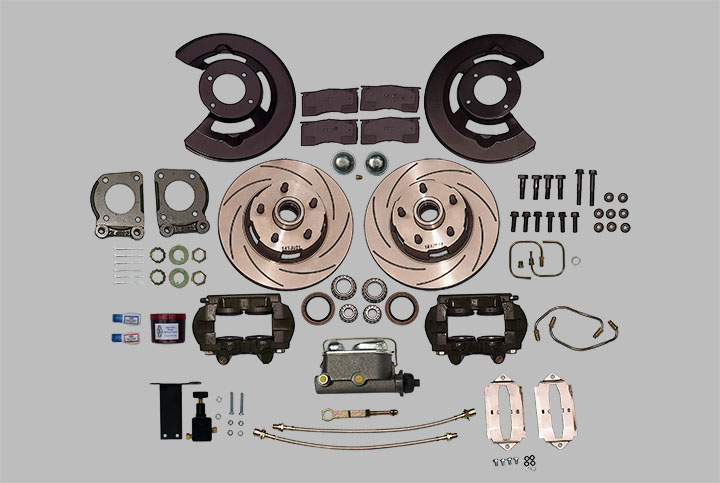

SWAP.1.3/M
: 5 lug front manual disc brake conversion kit for 5 lug 65-66 Mustang, manual or power steering

ADD TO CART                        IMAGE                $579 + S&H
_________________________________________________________

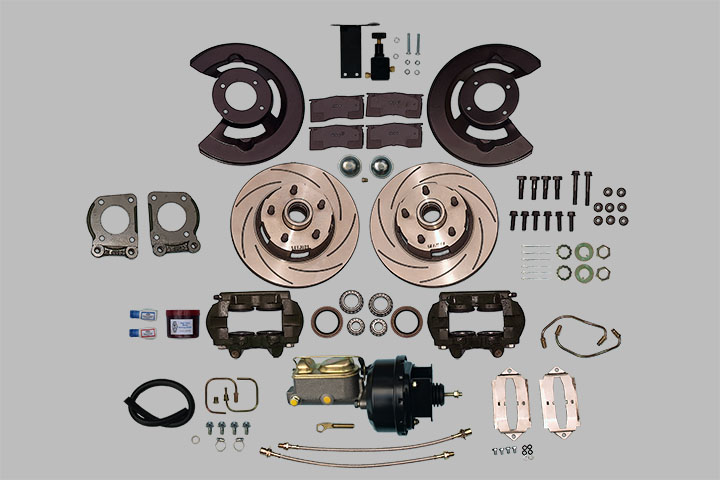

SWAP.1.3/PBU
: 5 lug power assist upgraded disc brake conversion for 5 lug 64-66 Mustang, manual or power steering, includes 65.PBU power brake upgrade kit, 8 CYL SPINDLES REQUIRED, AUTOMATIC TRANSMISSION cars only

ADD TO CART                        IMAGE                $699 + S&H
_________________________________________________________

SWAP.1.4/M
: 5 lug front manual disc brake conversion kit for 67-69 Mustang, manual or power steering

ADD TO CART                        IMAGE                $579 + S&H
_________________________________________________________

SWAP.1.4/PBU/AT
: 5 lug front power assist upgraded disc brake conversion kit for 67-69 Mustang, includes 67.PBU power brake upgrade unit, manual or power steering. AUTOMATIC TRANSMISSION

ADD TO CART                        IMAGE                $749 + S&H
_________________________________________________________

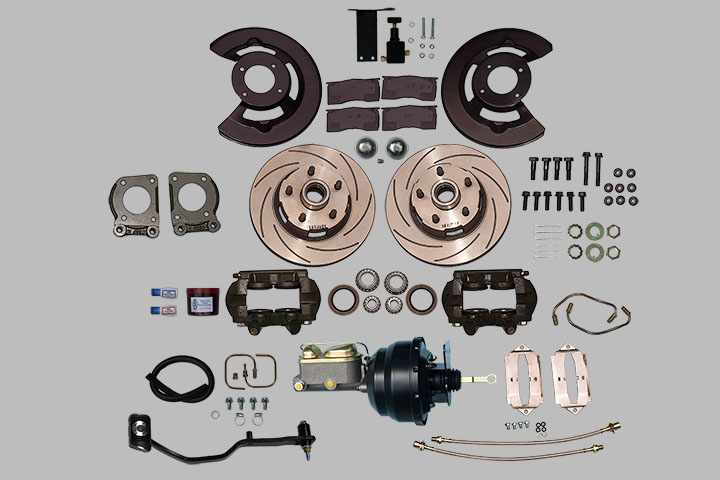

SWAP.1.4/PBU/MT
: 5 lug front power assist upgraded disc brake conversion kit for 67-69 Mustang, includes 67.PBU power brake upgrade unit, manual or power steering. MANUAL TRANSMISSION

ADD TO CART                        IMAGE                $749 + S&H
_________________________________________________________

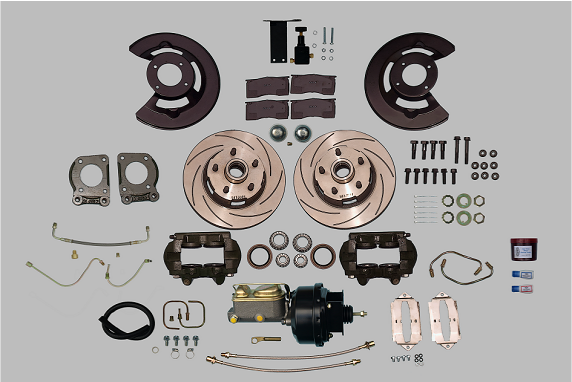

SWAP.1.7/PBU/AT
: 5 lug front power assist upgraded disc brake conversion kit for 70 Mustang, includes 67.PBU power brake upgrade unit, manual or power steering. AUTOMATIC TRANSMISSION

ADD TO CART                        IMAGE                $774 + S&H
_________________________________________________________

SWAP.1.7/PBU/MT
: 5 lug front power assist upgraded disc brake conversion kit for 70 Mustang, includes 67.PBU power brake upgrade unit, manual or power steering. MANUAL TRANSMISSION

ADD TO CART                        IMAGE                $774 + S&H
_________________________________________________________

SWAP.1.5/M
: 5 lug manual disc brake conversion kit for 5 lug 64-66 Mustang, manual or power steering,  8 CYL
LARGE BEARING SPINDLES REQUIRED (spindle P/N 7365 sold separately)

ADD TO CART                        IMAGE                $604 + S&H
_________________________________________________________

SWAP.1.5/PBU/AT
: 5 lug power assist upgraded disc brake conversion for 5 lug 64-66 Mustang, manual or power steering, includes 65.PBU power brake upgrade kit, 8 CYL
LARGE BEARING SPINDLES REQUIRED (spindle P/N 7365 sold separately)

ADD TO CART                        IMAGE                $714 + S&H
_________________________________________________________

SWAP.1.5/M/SLU.M/7365
: 5 lug front manual disc brake and
steering linkage upgrade for 4 lug 64-66 Mustang, MANUAL STEERING, includes new V8 type spindles

ADD TO CART                        IMAGE                $1079 + S&H
_________________________________________________________

SWAP.1.5/PBU/SLU.M/7365
: 5 lug front manual disc brake and steering
linkage upgrade for 4 lug 64-66 Mustang, MANUAL STEERING, includes 65.PBU power brake upgrade kit, includes new V8 type spindles, AUTOMATIC TRANSMISION CARS ONLY

ADD TO CART                        IMAGE                $1189 + S&H
_________________________________________________________

SWAP.1.6/M: 5 lug manual disc brake conversion kit for 70-73 Mustang, manual or power steering

ADD TO CART                        IMAGE                $604 + S&H
_________________________________________________________



SPECIFICATIONS

Rotor: Iron, 11.3" diameter, 0.88" thick, integral hub and rotor, ventilated and slotted, 5 lug on 4.5" pattern

Caliper
: Iron, black corrosion protection coating, 4 nickel plated alloy steel pistons, D11 pad set, deluxe stainless steel pad retainer-anti rattle clip, 7/16" hydraulic outlet

Caliper Bracket
: Machined cast Iron, static mount type, black corrosion protection coating

Dust Shields
: Semi-gloss black enamel coated steel stampings, grade 8 bolts and prevailing torque nuts

Master Cylinder
: Iron, 15/16" bore manual or 1" power, dual reservoir, front disk rear drum, optional 4 wheel disc type available, 3/8"-24 female flare fore outlet, 7/16"-24 female flare aft outlet

Proportioning Valve
: Adjustable, aluminum body, 1/8" female NPT outlets with 3/8"-24 female flare adapters pre-installed, mounting bracket included

10lbs Residual Pressure Valve
: Integrated into the forward master cylinder outlet fitting; 3/8"-24 outlet thread.

Brake Hose: polyethylene coated braided stainless steel with Teflon liner, 3/8"-24 or 7/16"-24 female inlet, 7/16"-24 male outlet


SWAP.1 Classic Ford Disc Brake Swap Kit    Ford Kelsey-Hayes type 4 PISTON CALIPER BASED KIT. See below for compatible applications

COMPATIBILITY:
This kit is compatible with 65-73 Mustang, 63-69 Falcon/Comet (60-62 as well with 63-65 upper control arm replacement), 62-69 Fairlane, 67-73 Cougar, 69-77 Maverick/Comet, 75-80 Granada/Monarch, and some Torino. This kit installs onto existing V8 drum brake type spindles. The spindles are not included. Users with pre 66 Falcon or pre 67 Mustang 6 cylinder cars will need to install 8 cylinder type spindles (our P/N 7365).

CONTENT:
The kit includes everything needed to swap out your front drum brakes for OE Kelsey-Hayes type 4 piston caliper front disc brakes originally found on 1965-1967 V8 Mustang and other 60's Ford cars. All new easy to install parts including dust shields, caliper brackets, corrosion protected calipers, brake pads, braided stainless steel brake hoses, hose brackets and attachment hardware, adjustable proportioning valve with convenient mounting bracket, a master cylinder with an integral residual pressure valve, master cylinder outlet adapter(s), an all metal master cylinder bleeding kit, an adjustable pushrod, wheel bearings, wheel seals, caliper attachment hardware, wheel attachment hardware, dust caps, performance slotted rotors with bearing races pre-installed, correct grade 8 attachment bolts, medium and high strength thread lockers, and high temperature wheel bearing grease. Note that you will need to adapt or re-fab your hard brake lines to accommodate the proportioning valve and the master cylinder.

Power brake versions include a correct power spec master cylinder, a booster, mounting brackets and  hardware, and an adjustable push rod.

Most original V8 type14" wheels will fit this conversion.
This is the easiest kit to install, and the kit that you should choose if you desire to use your original wheels and/or maintain "originality".
The 65.PBU power brake upgrade kit has all new parts including 7" booster, bracketry, power master cylinder upgrade, hose, power brake pedal push rod, and hardware. The kit can only be applied to 64-66 automatic transmission equipped cars. This kit is shipped with no additional S&H charge when purchased with a SWAP kit.

The 67.PBU power brake upgrade kit has all new parts including a 8" dual diaphragm booster, bracketry, power master cylinder upgrade, hose, power brake pedal push rod, deluxe power brake pedal with stainless steel pad trim and disc brake medallion, and hardware. The kit can only be applied to 67-70 automatic or manual transmission equipped cars. This kit is shipped with no additional S&H charge when purchased with a SWAP kit.

CLASSIC SERVICES RESTORATION PARTS
                                             Quality Disc Brake Conversion Kits for 50's-70's Ford Cars
PART NUMBER                            DESCRIPTION

   MUSTANG
Value, Content, Performance
FALCON/COMET, FAIRLANE
SWAP.1.3/M/F: 5 lug manual disc brake conversion kit for 5 lug 63-65 Falcon/Comet or 62-65 Fairlane, manual or power steering

ADD TO CART                        IMAGE                $579 + S&H

_________________________________________________________


SWAP.1.5/M/SLU.F/7365: 5 lug front manual disc brake and steering linkage upgrade for 4 lug 63-65 Falcon/Comet, MANUAL STEERING, includes new V8 type spindles, includes outer tie rod arms. Also applies to 60-62 models if the upper control arms/ball joints are replaced with 65 Falcon/Mustang type (not included)

ADD TO CART                        IMAGE                $1149 + S&H

_________________________________________________________


SWAP.1.4/M/F: 5 lug manual disc brake conversion kit for 5 lug 66-69 Falcon/Fairlane, manual or power steering


ADD TO CART                        IMAGE                $579 + S&H

_________________________________________________________



S&H For reference only, the S&H will be calculated at check out.  S&H are are based upon your State's shipping zone. See your State's zone on the chart below.

ZONE 1
        $30                 TX

ZONE 2
        $40                 AR, CO, KS, LA, MO, MS, NM, OK, TN

ZONE 3
        $47                AL, AZ, FL, GA, SC

ZONE 4
        $53                IA, IL, IN, KY, MD, MI, OH, NC, UT, VA, WV

ZONE 5
        $58                CA, DE, MI, NE, NJ, NY, NV, PA, SD, WI, WY

ZONE 6
        $66                CT, ID, MA, ME, MT, ND, NH, OR, RI, VT, WA

CALL FOR HI, AK, and international rates
